NC3FXS-B

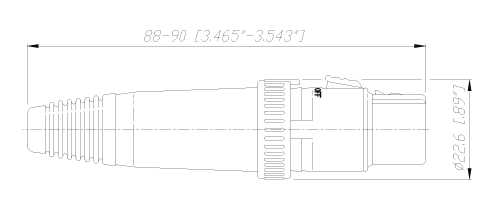

Female with noiseless ON-OFF rotary switch (shorts no. 2 and 3). Black metal housing and gold contacts.


XLR Cable Connectors / FXS Type
FX connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.



TECHNICAL DATA

Electrical
Number of contacts: 3
Contact resistance: ≤ 3 m
Insulation resistance - initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm▓/14 AWG

Capacitance between contacts: ≤ 4pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤ 20 N
Cable O.D. range: 3.5 mm - 8.0 mm

Materials
Shell: ZnAl4Cu1, gal Ni or black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: - female: CuSn6
- male: CuZn39Pb3
Contact surface: gal 2 Ám Ag or gal 0.2 Ám Au hard alloy over 2 Ám Ni
Latch lock (female): St3K32
Strain-relief clamp: POM
Antikink bushing: PUR

Environmental
Temperature range: -30░ C to + 80░ C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20

Compatibility:
IEC 61076-2-103 standard
