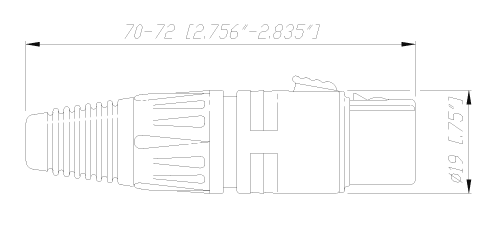

3 pole cable connector, female. Nickel housing and silver contacts.


Number of contacts: 3
Contact resistance: ≤ 3 m
Insulation resistance
- initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm/14 AWG
Capacitance between contacts: ≤ 4 pF

Lifetime: >1000 cycles
Insertion / withdrawal force: ≤ 20 N
Cable O.D. range: 3.5 mm - 8.0 mm

Shell: ZnAl4Cu1, gal Ni over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuSn8
Contact surface: gal 2 m Ag
Latch lock (female): St3K32
Strain-relief clamp: POM
Antikink bushing: PUR

Temperature range: -30 C to + 80 C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20

Compatibility / Remarks
Compatibility: IEC 61076-2-103 Standard
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix -D

XLR Cable Connectors / X Series
The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector). Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.
