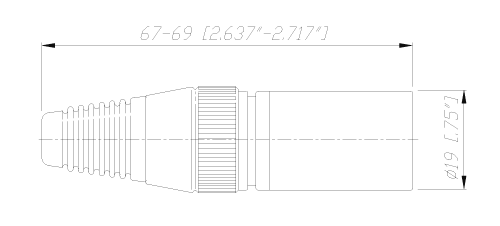

NC3MX-HD-B
Male, heavy duty version with metal boot and stainless steel shell. Black metal housing and gold contacts.



TECHNICAL DATA

Electrical
Number of contacts: 3
Contact resistance: ≤ 3 m
Insulation resistance - initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm▓/14 AWG

Capacitance between contacts: ≤ 4pF
Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤ 20 N
Cable O.D. range: 3.5 mm - 8.0 mm

Materials
Shell: ZnAl4Cu1, gal Ni or black Cr over Cu plating
Shell (male): stainless steel and zinc diecasting combined.
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: - female: CuSn6
- male: CuZn39Pb3
Contact surface: gal 2 Ám Ag or gal 0.2 Ám Au hard alloy over 2 Ám Ni
Latch lock (female): St3K32
Strain-relief clamp: POM
Antikink bushing: PUR
Sealing jacket: EPDM

Environmental
Temperature range: -30░ C to + 80░ C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
Protection class: IP 65
Compatibility: IEC 61076-2-103 standard


XLR Cable Connectors / X-HD Series
`Heavy duty` 3-pole-cable connectors for outdoor use. All metal design, dust and water protected according to IP 65. Gold contacts standard.
