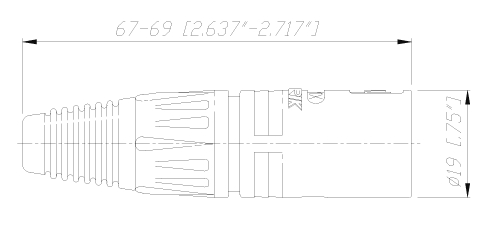

NC3MX
3 pole cable connector, male. Nickel housing and silver contacts.


TECHNICAL DATA

Electrical
Number of contacts: 3
Contact resistance: ≤ 3 m
Insulation resistance
- initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: ≤ 4 pF

Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: ≤ 20 N
Cable O.D. range: 3.5 mm - 8.0 mm


Materials
Shell: ZnAl4Cu1, gal Ni over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuZn39Pb3
Contact surface: gal 2 µm Ag
Strain-relief clamp: POM
Antikink bushing: PUR

Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20

Compatibility / Remarks
Compatibility: IEC 61076-2-103 Standard
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix ´-D´


XLR Cable Connectors / X Series
The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector). Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.
