NC5MX-B
5 pole cable connector, male. Black metal housing and gold contacts.


TECHNICAL DATA

Electrical
Number of contacts: 5
Contact resistance: < 3 m
Insulation resistance
- initial: > 2 G
- after damp heat test: > 1 G
Dielectric strength: 1500 V dc
Rated current: 7.5 A
AWG: 1.0 mm▓/18 AWG
Capacitance between contacts: 7 pF

Mechanical
Lifetime: >1000 cycles
Insertion / withdrawal force: < 20 N

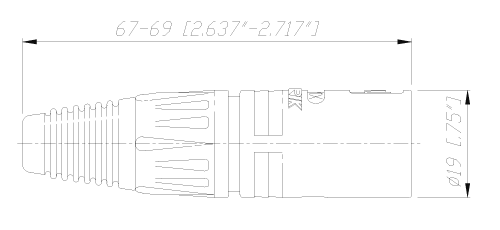

Cable O.D. range: 3.5 mm - 8.0 mm


Materials
Shell: ZnAl4Cu1, black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuZn39Pb3
Contact surface: gal 0.2 Ám Au hard alloy over 2 Ám Ni
Strain-relief clamp: POM
Antikink bushing: PUR

Environmental
Temperature range: -30░ C to + 80░ C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20

Compatibility / Remarks
Compatibility: IEC 61076-2-103 Standard


XLR Cable Connectors / X Series
The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector). Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.
