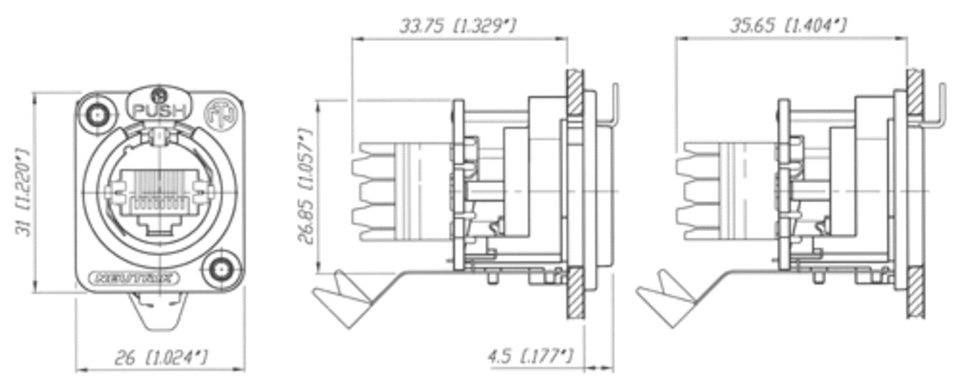

NE8FDV-Y110
Panel mount receptacle with IDC 110 punch down terminals. D-sized metal flange with the secure latching system. Max. panel thickness 4 mm. Includes 2 mounting screws.

TECHNICAL DATA

Electrical
Frequency bandwidth: 1 - 100 MHz
Number of contacts: 8
Rated current: 1.5 A
AWG: 26 - 20
Dielectric strength: 1000 V ac rms
Contact resistance: < 10 m
Insulation resistance: > 500 M
Category 5e

Mechanical
Lifetime: 1000 mating cycles
Retention method: latch lock
Panel thickness: max. 4 mm [0.12"]


Materials
Housing: PBTP 15% GR
D-flange: Zinc diecast (ZnAl4Cu1, gal Ni)
Strain relief clamp: Ck67, Ni plated
Contacts: Bronze CuSn6
Contact surface: Au (gal 0.2 Ám over Ni plating)
Temperature range: -30░C to +80░C
Flammability: UL94-V0


RJ45 Data Connector / EtherCon« Series
The EtherCon« Series offer both male cable carriers and assembled female receptacles. The cable end offers a robust die-cast shell as a carrier for pre-assembled and not assembled RJ45 plugs. Female chassis connectors are based on the current NEUTRIK« #A & B# Series as well the #D# Series of XLR receptacles with secure latching system - a feature not found on other RJ45 receptacles. Terminations are horizontal and vertical PCB or IDC, punch down. Color coding is available for both the cable carrier and the receptacles for ease of identification.
NEUTRIK« EtherCon« products comply with Category 5 (IDC versions) shielded or unshielded and are compatible for use with 10 Base-T and 100 Base-TX systems.
