NF2C-B-2
Professional `Phono Plug` (`RCA`- or `CINCH`- type). Ground before signal, gold contacts. Per pair - marked red and black.


Phono (RCA) / Profi
Spring loaded ground contact: retractable element with separate wedge contacts which keeps the shell in the front position when engaged thus also providing a direct and strictly coaxial electrical connection from the socket via the shell to the cable shield. All metal design, machined brass, black ceated shell. Easy assembly and soldering (large soldering area, rapid-flow plating). High grade plastic insulator with high creep resistance.

TECHNICAL DATA

Electrical
Rated current: 16 A
Rated voltage: 50 V ac
Insulation resistance: > 100 G
Dielectric strength: 1500 V dc
Capacitance (pin to shell): 7 pF

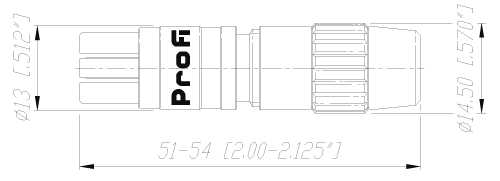

Mechanical
Cable anchoring: NEUTRIK« chuck principle
Cable OD range: 3.0 - 5.5 mm (blue chuck)
5.5 - 7.3 mm (black chuck)
Max. wire size: 2.5 mm▓ / 14 AWG
Solderability: complies with IEC 68-2-20

Materials
Shell: Brass CuZn39Pb3 black coated
Contact pin: Brass CuZn39Pb3 0.5 mm Au plated
Ground contact: Brass CuZn39Pb3 0.5 Ám Au plated over 5 Ám Ni
Chuck: Polyacetal POM
Insulator: PBTP
Temperature range: -30░C to +80░C
