Phono socket in black chrome D-shape housing, red isolation washers, solder version.

Phono (RCA) / Phono (RCA) Sockets

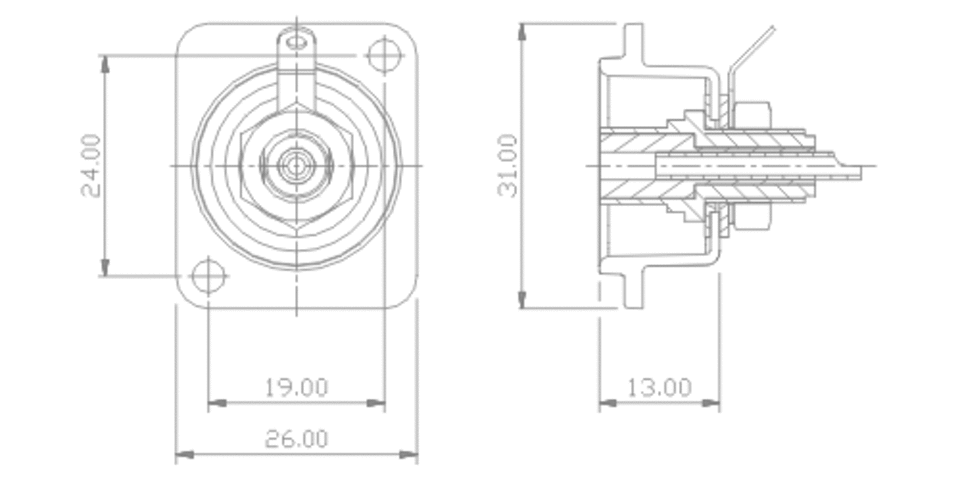

Chassis Phono (RCA) socket in D-shape housing.


Rated Current: 16A
Rated Voltage: 50V
Insulation Resistance: 5 G
Contact Resistance: 10 m
Dielectric Strength: 500V
Solderability acc. IEC68-2-20
Temperature Range: -25C to +70C

Materials and Platings:
Shell of the RCA : Brass, Au plated
contacts : Brass, Au plated
D-housing: ZnAl4Cu1, gal Ni or black Cr plating
Insulator: PA6+30GF
