NJ3FC6-BAG
Professional locking cable-jack for secure in-line connections. Excellent cable protection. Black metal housing and silver contacts.


Jacks / Locking 1/4" Cable Jacks
Another unique Neutrik innovation: Securely locking jack for cable assemblies. Mates with all mono or stereo plugs specified to EIA RS 453.


TECHNICAL DATA

Electrical
Contact resistance - initial: < 6 m
- after life test: <15 m
Insulation resistance - initial: >2 G
- after damp heat test: = 1 G
Dielectric strength: 1.5 kV dc
Rated current: 10 A

Mechanical
Life: >10000 cycles
Insertion / withdrawal force: < 19 N / < 22 N
Locking force: > 80 N
Wire size: 1 mm² / 18 AWG max. for soldering tag

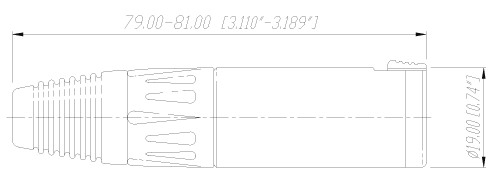

Cable O.D. (FC 6 only): 3.5 mm - 8.0 mm
Solderability: compiles with IEC 68-2-20

Materials
Shell / Handle: ZnAl4Cu1 nickel plated or black coated

FP6P: PA 6.6 30% GR
Insulation: PA 6.6 30% GR
Contacts: CuBe2 / CuZn37 (ground) 2 µm Ag plated
Chuck: POM
Bushing: PA 6.6 15% GR + PUR
Temperature range: -20°C to +65°C
