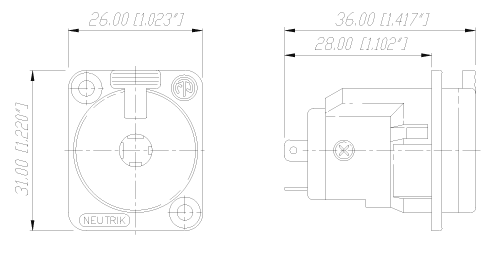

NJ3FP6C-BAG
Locking 1/4 Inch phone jack. Same shell as D-Series. For mono or stereo plugs. Black metal housing and silver contacts.


Jacks / Locking 1/4" Chassis Jacks
Mates with all mono or stereo plugs specified to EIA RS 453 dimensionally compatible with
D-series.





TECHNICAL DATA

Electrical
Contact resistance - initial: < 6 m
- after life test: <15 m
Insulation resistance - initial: >2 G
- after damp heat test: = 1 G
Dielectric strength: 1.5 kV dc
Rated current: 10 A

Mechanical
Life: >10000 cycles
Insertion / withdrawal force: < 19 N / < 22 N
Locking force: > 80 N
Wire size: 1 mm² / 18 AWG max. for soldering tag
Cable O.D. (FC 6 only): 3.5 mm - 8.0 mm
Solderability: compiles with IEC 68-2-20

Materials
Shell / Handle: ZnAl4Cu1 nickel plated or black coated
FP6P: PA 6.6 30% GR
Insulation: PA 6.6 30% GR
Contacts: CuBe2 / CuZn37 (ground) 2 µm Ag plated
Chuck: POM
Temperature range: -20°C to +65°C

Remarks
Applicable Standard Compatibility: EIA RS 453
