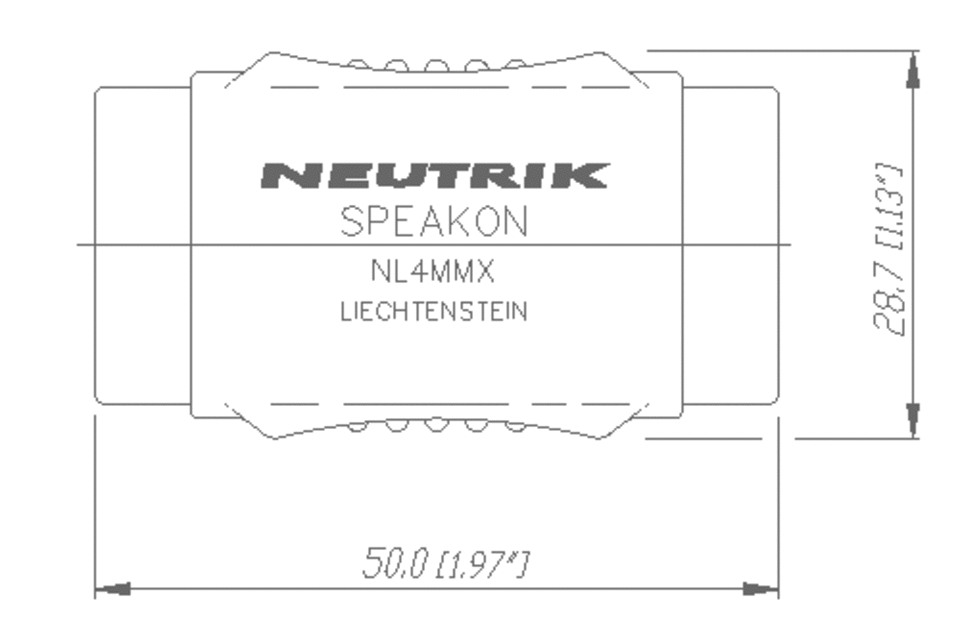

4 pole lockable coupler. Links two NL2/4FC`s together for cable extension.
Can be permanently attached to NL2/4FC.
Rated current/contact: 15 A rms continous
Dielectric strength: 4kV peak
Rated voltage: 250 V ac
Contact resistance: = 3 m (= 10 m for NL4MD-H)
after 5000 insertion-withdrawal operations
Insulation resistance - initial: > 2 G
- after damp heat test: > 1 G
Inrush/outrush current capability (12 V source): 300/30 A/200 ms
Creepage distance: according to IEC 664-1
Housing: PA 6,6 30% GR
Temperature range: -30°C to +80°C
|SpeakonŽ Lockable Loudspeaker Connector
