NL8FC
8 pole cable connector with latch lock. Cable sleeve for cables 8 - 20 mm diameter. 30 A continuous per contact.


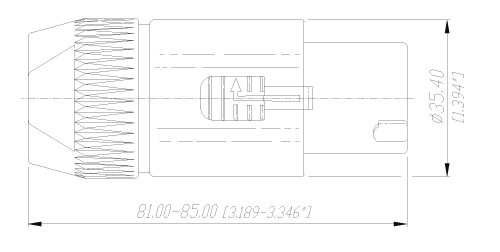

TECHNICAL DATA

Electrical
Rated current/contact: 30 A rms continous,
40 A rms 1 min.
Dielectric strength: 4kV peak
Rated voltage: 250 V ac
Contact resistance: = 3 m after 5000 insertion-withdrawal operations
Insulation resistance - initial: > 2 G
- after damp heat test: > 1 G
Inrush/outrush current capability (12 V source): 300/30 A/200 ms
Creepage distance: according to IEC 664-1

Mechanical
Lifetime: >5000 mating cycles
Retention method: Quicklock with latch
Cable anchoring: NEUTRIK® chuck principle
Cable O.D. range: 8 - 20 mm
Cable retention force: = 220 N Subject to cable die and material
Wiring: screw-type terminals or soldering, 12 AWG stranded/solid
Solderability complies with IEC 68-2-20

Materials
Contacts: Female: CuZn39Pb3
Securing element: ZnAI4Cu1, CuNi plated
Housing: PA 6 30% GR
Insert (FC part): PBTP 20% GR
Bushing: PA 6 15% GR
Chuck: POM
Temperature range: -30°C to +80°C
Flammability: UL94V-0 (housing), UL94HB

WIRING

Cable
4-way-system: an eight-conductor cable on both ends wired to pins 1+/1-, 2+/2-, 3+/3-, 4+/4- of NL8FC
BI-Amp: a four-conductor cable on both ends wired to pins 1+/1-, 4+/4- of NL8FC


Speakon® Lockable Loudspeaker Connector / Cable Connectors
Extremely reliable and robust. 2,4 and 8 pole versions with `Quick Lock` system. Neutrik unique chuck type strain relief. Cable connectors have solid contacts with screw-type terminals, a special stranded wire protection and are solderable too. Excellent price / performance ratio.
